Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver

1 bộ/bộ
MOQ
negotiable
giá bán
Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Tên sản phẩm: Máy lái đống, Đống lái, Đống lái vít
Tên: Máy đóng cọc thủy lực,Thiết bị đóng cọc
Ứng dụng: Xây dựng nền móng kỹ thuật
Tính năng: Hiệu suất khoan cao,Kiểm soát thủy lực,Hiệu suất cao
Quyền lực: 73,5kw
đường kính lỗ: 90-160mm
Chiều dài thanh: 3m
Đường kính thanh: 60/64/76/89mm
Tốc xoắn xoay tối đa: 7320nm
tốc độ quay: 0-140 vòng/phút
Giải phóng mặt bằng: 350mm
Lực nâng: 18kn
lực lượng ăn: 8KN
Thúc đẩy bồi thường: 1250mm
đột quỵ cho ăn: 4105mm
Theo dõi chiều rộng: 300mm
Tốc độ đi bộ: 2,5--3km / giờ
Kích thước(l*w*h): 6000*2150*2600mm
Cân nặng: 6600 kg
Làm nổi bật:

hydraulic pile driver machine with warranty

,

crawler pile driver for building foundation

,

precise depth pile drilling rig
Thông tin cơ bản
Nguồn gốc: Chiết Giang, Trung Quốc
Hàng hiệu: SANROCK
Chứng nhận: CE ISO 9001:2015
Số mô hình: SRP550A
Tài liệu: Pile Driver and Rotary Dril...ig.pdf
Thanh toán
chi tiết đóng gói: Gói khỏa thân cho máy móc, gói hộp gỗ cho phụ tùng hoặc nhu cầu của khách hàng.
Thời gian giao hàng: 15 ngày
Điều khoản thanh toán: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Khả năng cung cấp: 5000set/bộ mỗi tháng
Mô tả sản phẩm

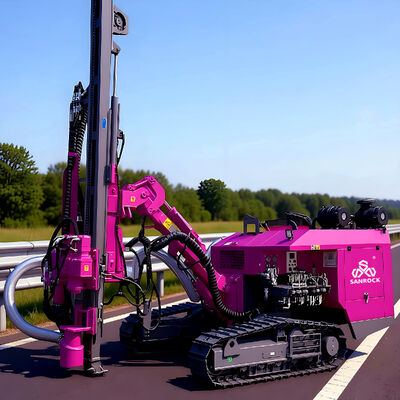

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 0

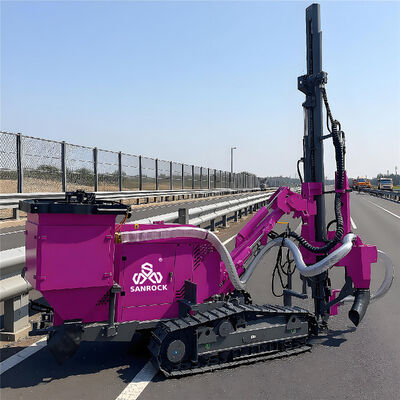

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 1

This multi-functional anchor drilling machine is a high-performance hydraulic drilling equipment specially developed for scenarios such as slope support, foundation anchoring, photovoltaic pile foundation, tunnel engineering, and soil and rock reinforcement. The entire machine is equipped with a 73.5KW high-power power system, with sufficient power reserve and stable output torque. It can easily handle complex construction conditions such as soil layers, weathered rock layers, and mixed strata, balancing efficient drilling and stable operation performance. It is a mainstream and popular model in domestic infrastructure, geotechnical engineering, and mine support projects.
The core configuration of the equipment is an automatic drill pipe replacement system, which overturns the traditional manual pipe replacement mode. It eliminates the need for frequent manual disassembly and assembly of the drill pipe, significantly reducing the time for pipe replacement and effectively improving the overall construction efficiency. At the same time, it reduces the manual operation intensity and construction safety risks, and is suitable for long-term, continuous batch drilling operations. The equipment has high intelligence and automation levels, meeting the needs of overseas large-scale construction projects.
In terms of construction parameters, the equipment precisely adapts to the common construction specifications of the project, with drill hole diameters ranging from 90 to 160mm, capable of meeting the construction requirements of various hole diameters such as anchor bolt holes, anchor cable holes, foundation reinforcement holes, and photovoltaic pile foundation holes. It is suitable for the majority of anchoring support and micro-pile foundation drilling scenarios. The standard 3-meter standard extended drill pipe is equipped, with a longer single drill pipe operation range, reducing the number of connection rods and further improving the drilling continuity, reducing drilling deviation, and ensuring the accuracy and quality of the hole formation.
The entire machine adopts an integrated hydraulic control system, with stable power output, adjustable drilling speed and thrust, and can precisely adjust the parameters. It is less likely to encounter problems such as stuck drill pipes and misaligned holes in alternating soft and hard strata, resulting in regular hole formation and excellent anchoring effects. The machine has a compact structure and strong mobility, suitable for complex operation environments such as mountains, slopes, and narrow construction sites. It supports vertical, inclined, and horizontal multi-angle drilling, being multi-functional and highly versatile.
The equipment is made of high-quality materials, with mature processes, and its core components are wear-resistant and durable, with low failure rates, simple maintenance, and stable operation. It is suitable for overseas high-intensity and uninterrupted construction scenarios, with outstanding cost performance. It is widely applicable to various projects such as road and railway slope protection, foundation anchoring for high-rise buildings, mine tunnel support, photovoltaic power station pile foundation construction, tunnel surrounding rock reinforcement, and geological disaster treatment. It is the preferred efficient anchoring drilling equipment for overseas engineering contractors.

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 2

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 3

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 4

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 5

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 6

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 7


Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 8

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 9

Products Description

Product Name
Pile Driving Machine


Application


Foundation Construction Works

Keywords
Crawler Pile Drive


Drill diameter
90-500mm


Feature
High Performance


Max. Rotation Torque
7320nm


Feeding Stroke
4105mm


Rotation Rate
0-140rpm


Groundclearance
350mm


Walking speed(km/h)
2.5--3km/h
Dimension(L*W*H)
6000*2150*2600mm
Weight
6600 kg



Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 10


Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 11

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 12

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 13

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 14

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 15

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 16

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 17

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 18

Company Profile

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 19

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 20

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 21

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 22



Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 23

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 24

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment?   How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.   Shipping efficiency depends on country and city you want to ship to.   For small and delicate products, we ship by DHL, UPS, Fedex or TNT.  You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.  There will be strict inspection and testing for every order before shipping out.
