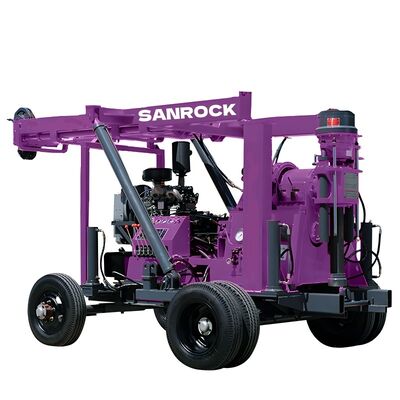

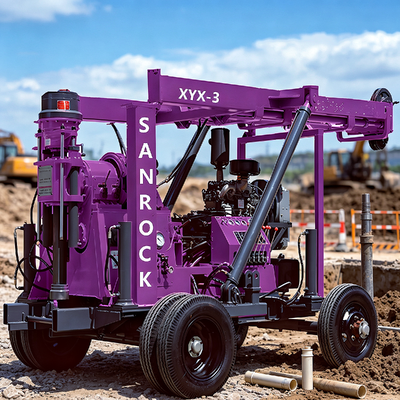

The SANROCK XYX-3 Deep Hole Core Drilling Rig is configured for exploration projects requiring deep drilling to 600 meters. This full hydraulic diamond core drill machine features a heavy-duty spindle drive, high-capacity mud pump, and reinforced mast designed to handle the increased torque and rod weight of deep hole diamond coring.
The XYX-3's hydraulic wireline coring system (optional) enables rapid core retrieval without tripping drill rods — a critical advantage at 500-600m depths where rod tripping time can consume hours per run. The diesel engine delivers consistent power through the full depth range, maintaining optimal bit rotation speed and mud circulation pressure even in the deepest section of the hole.
Deep Drilling Features:
●High-torque spindle drive for deep rod string rotation
●Wireline core barrel system (optional) — eliminates rod tripping
●High-pressure mud pump for deep hole flushing
●Automatic feed control for consistent penetration at depth
●Rod handling winch for efficient pipe management
Applications: Deep mineral resource drilling / stratigraphic exploration / deep groundwater investigation / geothermal gradient drilling / scientific research boreholes.
Product Description
| Type:Core Drilling Rig Power Type:Diesel Drilling depth:600m Drilling diameter:75-300mm Open hole diameter:300mm Final hole diameter:75mm Drill pipe:Φ60 Drilling inclination:90°--65° Vertical axis forward speed:32-1057r/min Vertical axis reversal speed:29-137r/min Vertical axis travel:600mm Vertical shaft bore diameter:96mm Vertical axis to enhance ability:60kN Single rope to enhance speed:0.5-1.9m/s Rope diameter:12.5mm Single rope to enhance ability:30kN Reel diameter:300mm Reel capacity:65m Mud pump (optional) Horizontal three-cylinder BW-250 mud pump Displacement:250L/min Work pressure:80kgcm2 Intake pipe diameter:76mm Outlet diameter:51mm Double gear pump:CBF-F63/25 Pre-flow pressure:63L/min 20Mpa Post-flow pressure:25L/min 20Mpa Diesel engine:CloudYN27/power 42kw / 2400rpm Motor:Y180L-4/22kW/1470rpm Rig weight:3600KG Dimensions:2900×2560×3300mm |
Company Information
Certificate
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
