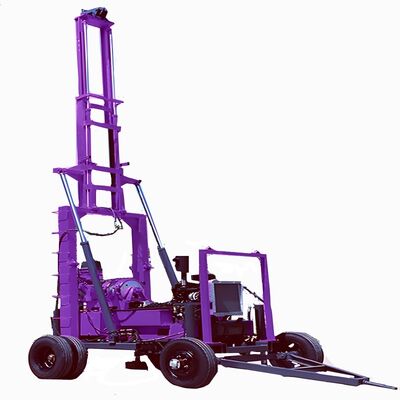

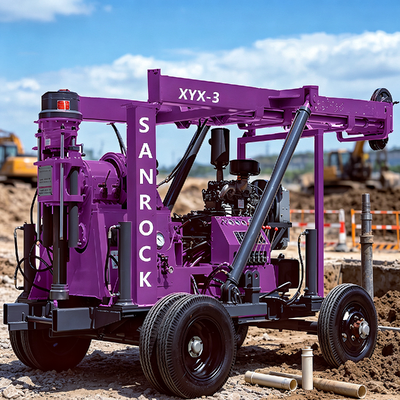

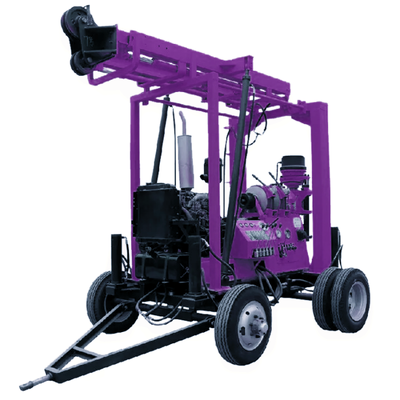

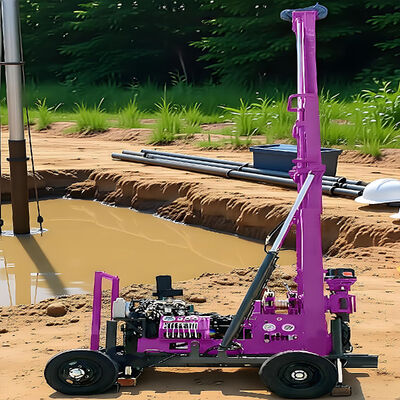

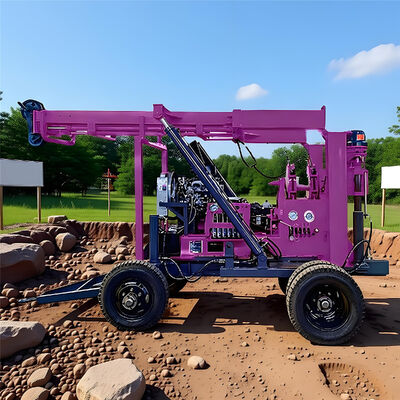

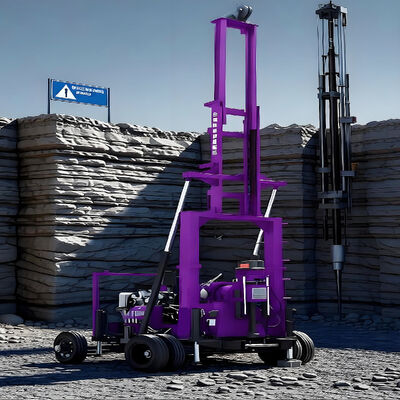

The SANROCK XYX-3 Geotechnical Core Drilling Rig is optimized for geotechnical investigation, soil investigation, and foundation engineering projects. This hydraulic diamond core drill machine delivers 100-600m drilling depth with precise core recovery for rock mechanics testing, soil profiling, and site characterization.
The XYX-3's spindle-type design provides the controlled feed rate essential for undisturbed soil sampling and rock core extraction. The trailer-mounted platform enables rapid mobilization to construction sites, dam foundations, tunnel portals, and bridge pier locations.
Geotechnical Testing Compatible:
●SPT (Standard Penetration Test) capable
●Rock quality designation (RQD) sampling
●Undisturbed soil sampling with Shelby tubes
●In-situ permeability testing
●Core orientation for structural geology
Applications: High-rise building foundation investigation / bridge and dam site exploration / tunnel geological advance prediction / slope stability assessment / infrastructure corridor survey.
Product Description
| Type:Core Drilling Rig Power Type:Diesel Drilling depth:600m Drilling diameter:75-300mm Open hole diameter:300mm Final hole diameter:75mm Drill pipe:Φ60 Drilling inclination:90°--65° Vertical axis forward speed:32-1057r/min Vertical axis reversal speed:29-137r/min Vertical axis travel:600mm Vertical shaft bore diameter:96mm Vertical axis to enhance ability:60kN Single rope to enhance speed:0.5-1.9m/s Rope diameter:12.5mm Single rope to enhance ability:30kN Reel diameter:300mm Reel capacity:65m Mud pump (optional) Horizontal three-cylinder BW-250 mud pump Displacement:250L/min Work pressure:80kgcm2 Intake pipe diameter:76mm Outlet diameter:51mm Double gear pump:CBF-F63/25 Pre-flow pressure:63L/min 20Mpa Post-flow pressure:25L/min 20Mpa Diesel engine:CloudYN27/power 42kw / 2400rpm Motor:Y180L-4/22kW/1470rpm Rig weight:3600KG Dimensions:2900×2560×3300mm |
Company Information
Certificate
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
