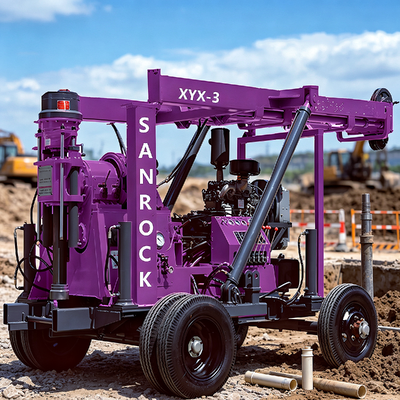

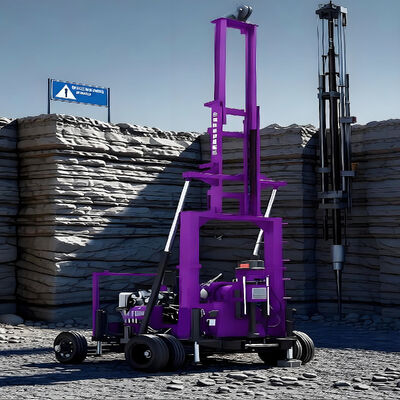

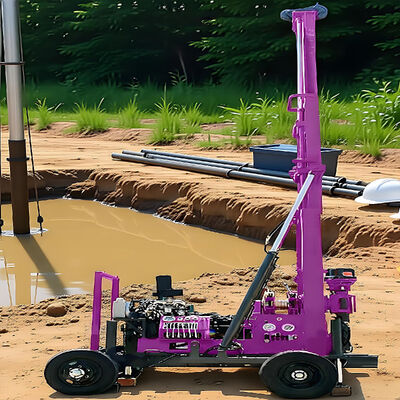

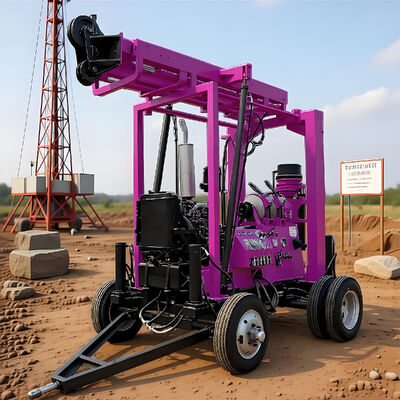

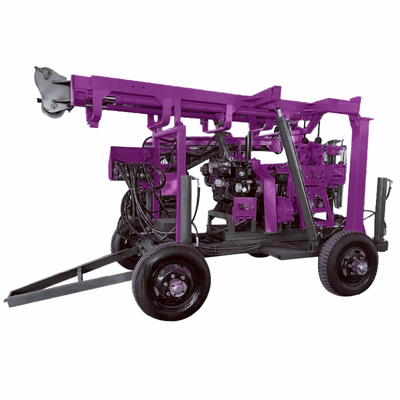

The SANROCK XYX-3 Coal Geological Core Drilling Rig is specifically configured for coal mine exploration and coalfield geological investigation. This hydraulic core drill machine reaches a maximum depth of 600m, covering the typical depth range of coal seam exploration. The open hole diameter of 75-325mm accommodates both overburden drilling and coal seam coring.
Designed with safety and reliability in mind, the XYX-3 features a diesel-powered hydraulic system that operates without electrical sparks — essential for coal exploration environments. The trailer-mounted mobility allows the rig to move between drill sites on coalfield roads with minimal disassembly.
Coal-Specific Configurations:
●Spindle speeds optimized for soft coal seam coring
●Wireline core barrel option for faster tripping in deep holes
●Mud circulation system prevents coal seam contamination
Applications: Coal seam thickness verification / coal quality sampling / coalbed methane (CBM) exploration / mine geological hazard assessment / overburden characterization.
Product Description
| Type:Core Drilling Rig Power Type:Diesel Drilling depth:600m Drilling diameter:75-300mm Open hole diameter:300mm Final hole diameter:75mm Drill pipe:Φ60 Drilling inclination:90°--65° Vertical axis forward speed:32-1057r/min Vertical axis reversal speed:29-137r/min Vertical axis travel:600mm Vertical shaft bore diameter:96mm Vertical axis to enhance ability:60kN Single rope to enhance speed:0.5-1.9m/s Rope diameter:12.5mm Single rope to enhance ability:30kN Reel diameter:300mm Reel capacity:65m Mud pump (optional) Horizontal three-cylinder BW-250 mud pump Displacement:250L/min Work pressure:80kgcm2 Intake pipe diameter:76mm Outlet diameter:51mm Double gear pump:CBF-F63/25 Pre-flow pressure:63L/min 20Mpa Post-flow pressure:25L/min 20Mpa Diesel engine:CloudYN27/power 42kw / 2400rpm Motor:Y180L-4/22kW/1470rpm Rig weight:3600KG Dimensions:2900×2560×3300mm |
Company Information
Certificate
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
