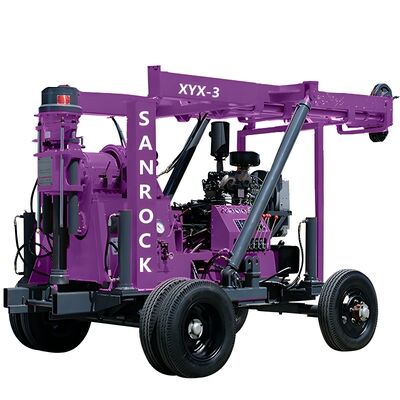

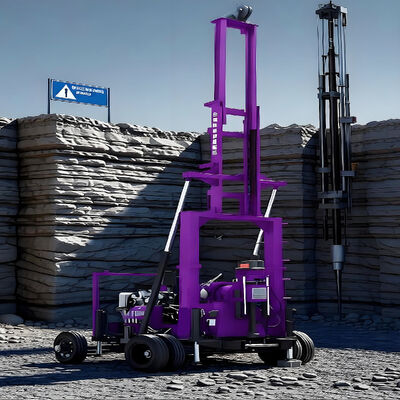

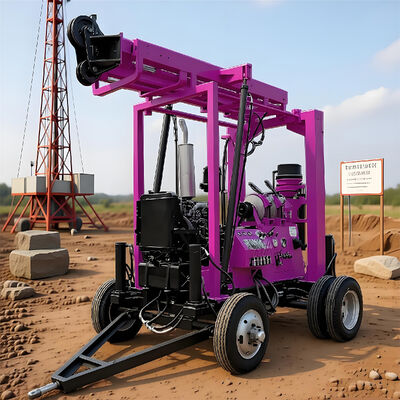

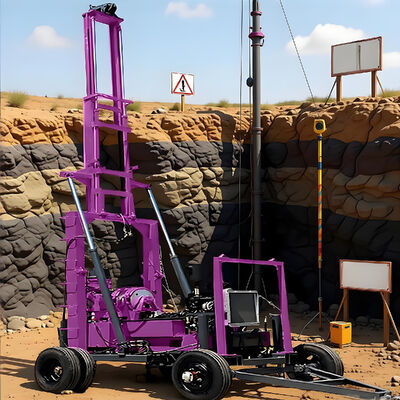

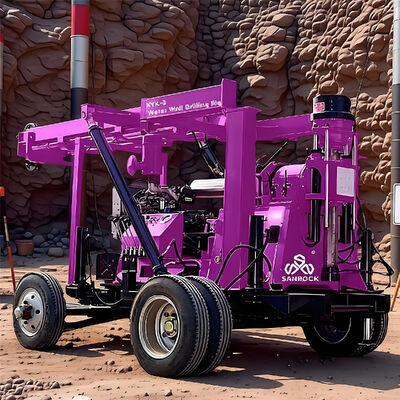

The SANROCK XYX-3 Hydraulic Core Drilling Rig is purpose-built for gold exploration and precious metal prospecting. This hydraulic diamond core drill machine achieves a maximum drilling depth of 600m, enabling geologists to extract intact rock core samples from deep gold-bearing formations. With a final hole diameter of 75mm and open hole capability up to 300mm, Trailer mounted core drilling rig handles both surface overburden and hard bedrock with equal efficiency.
The spindle-type core drilling rig delivers precise rotational control for diamond core sampling in quartz veins, greenstone belts, and gold-copper porphyry deposits. The trailer-mounted design with 6-wheel chassis allows rapid deployment between drill sites — critical for gold exploration programs where time is money.
Why Choose XYX-3 for Gold Mining:
●600m depth reaches deep gold ore bodies
●Diamond core bit provides high core recovery rate (>95%)
●Hydraulic feed system ensures consistent penetration in fractured rock zones
●Diesel power operates independently of grid electricity — ideal for remote gold fields
●Mobile trailer design reduces setup time between boreholes
Applications: Gold exploration drilling / copper-gold porphyry / epithermal gold / gold sampling / geological mapping / resource estimation drilling.
Product Description
| Type:Core Drilling Rig Power Type:Diesel Drilling depth:600m Drilling diameter:75-300mm Open hole diameter:300mm Final hole diameter:75mm Drill pipe:Φ60 Drilling inclination:90°--65° Vertical axis forward speed:32-1057r/min Vertical axis reversal speed:29-137r/min Vertical axis travel:600mm Vertical shaft bore diameter:96mm Vertical axis to enhance ability:60kN Single rope to enhance speed:0.5-1.9m/s Rope diameter:12.5mm Single rope to enhance ability:30kN Reel diameter:300mm Reel capacity:65m Mud pump (optional) Horizontal three-cylinder BW-250 mud pump Displacement:250L/min Work pressure:80kgcm2 Intake pipe diameter:76mm Outlet diameter:51mm Double gear pump:CBF-F63/25 Pre-flow pressure:63L/min 20Mpa Post-flow pressure:25L/min 20Mpa Diesel engine:CloudYN27/power 42kw / 2400rpm Motor:Y180L-4/22kW/1470rpm Rig weight:3600KG Dimensions:2900×2560×3300mm |
Company Information
Certificate
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
