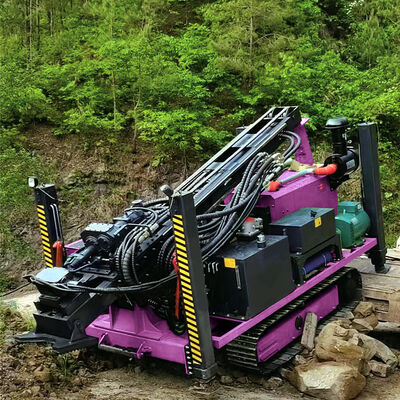

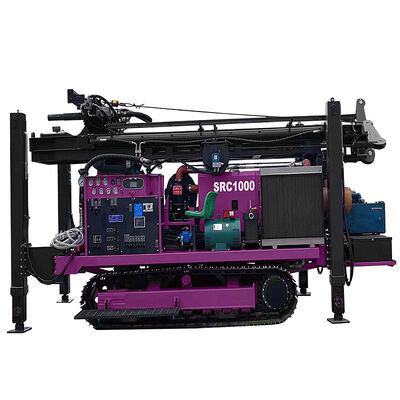

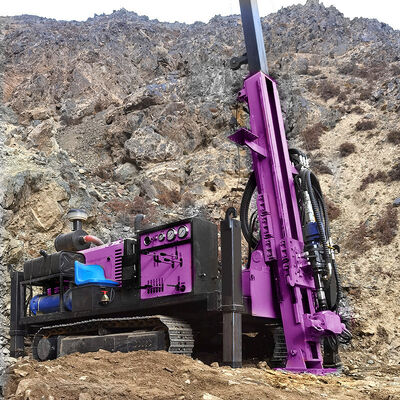

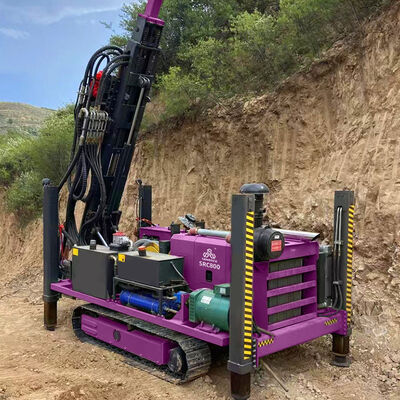

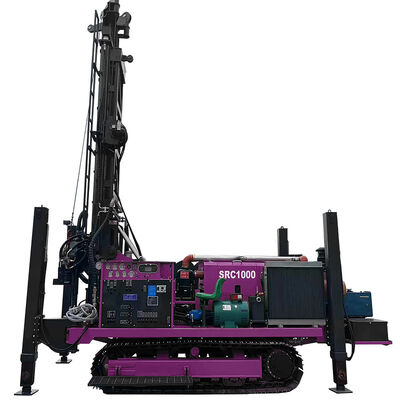

Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig

1set/bộ mỗi tháng
MOQ
negotiable
giá bán
Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Tên sản phẩm: Máy khoan lõi
tên: máy khoan lõi
Ứng dụng: Thăm dò địa chất
Tính năng: Hiệu quả khoan cao, kiểm soát thủy lực, giá cả cạnh tranh
Loại điện: Diesel
ĐỘNG CƠ: Cummins
Quyền lực: 154kw (Sáu xi lanh)
Đường kính khoan: 75-350mm
Độ sâu khoan: 1000m
Khoan ống dia: BQ/NQ/HQ/PQ
Khoan có chiều dài đường ống: 1,5/2/3m
Hành trình tối đa của đầu nguồn: 2,4/4m
Mô-men xoắn quay: 1700-1800N.m
Tốc độ quay: 500-1600 vòng/phút
Max. tối đa. hoist capacity công suất vận thăng: 17T
Tốc độ làm việc: 2,5km/h
Khả năng leo núi: 35Tối đa.
Kích thước (L * W * H): 4700*2000*2280mm
Cân nặng: 7800 kg
Làm nổi bật:

1000m depth core drilling machine

,

geological diamond core drill rig

,

diamond core drilling rig equipment

Thông tin cơ bản
Nguồn gốc: Chiết Giang, Trung Quốc
Hàng hiệu: SANROCK
Chứng nhận: CE ISO 9001:2015
Số mô hình: SRC1000
Thanh toán
chi tiết đóng gói: Gói khỏa thân cho máy móc, gói hộp gỗ cho phụ tùng hoặc nhu cầu của khách hàng.
Thời gian giao hàng: 15-25 ngày
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Khả năng cung cấp: 5000set/bộ mỗi tháng
Mô tả sản phẩm

This precision drilling system employs industrial-grade diamond-impregnated bits

to extract intact core samples from ultra-hard rock formations, making it indispensable

for geological exploration and mineral resource evaluation.

Hydraulic control drill mast can be raised and put down by hydraulic cylinders, which saves time

and worker labor.Four hydraulic jacks, can lift the machine be loaded onto and unloaded from truck compartment.

Also they can be used for rig leveling and support at work.24V electric-start diesel engine reduces

the operator's labor intensity.

Core drilling rig exploration borehole construction demonstration showcases the systematic process of extracting geological samples through rotary drilling technology. Operators precisely operate the heavy-duty rig to penetrate subsurface formations while maintaining core integrity. The process includes site preparation, drill string assembly, and diamond-tipped core barrel deployment to obtain undisturbed cylindrical rock samples.







Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 0Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 1Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 2

Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 3

Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 4

Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 5

Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 6

Products Description

Model :SRC1000
Drilling depth:1000m
Drill pipe dia:BQ/NQ/HQ/PQ
Drill pipe length:1.5/2/3m
The maximum stroke of power head:2.4/4m
Engine brand:Cummins
Engine power:154kw( Six cylinder)
Rotary torque:1700-1800N.m
Rotating speed:500-1600 rpm
Max.hoist capacity:17T
Move mode:Hydraulic crawler/remote control
Working speed:2.5Km/h
Climbing capacity:35Max.
Dimension:4700*2000*2280mm
Weight:7.8T




Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 7

Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 8


Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 9Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 10

Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 11

Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 12Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 13

Company Profile



Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 14

Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 15

Rock Core Drilling Machine Depth 1000m Geological Drill Equipment Diamond Core Drilling Rig 16

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
