Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig

1set/bộ mỗi tháng
MOQ
negotiable
giá bán
Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Tên sản phẩm: Giàn khoan
tên: GIÀN KHOAN ĐÁ
Ứng dụng: Dự án khai thác, than, quặng, giếng nước
Tính năng: Kiểm soát thủy lực, hiệu quả khoan cao trọng lượng nhẹ
Đường kính khoan: 50-80mm
Độ sâu khoan: 35m
Mô hình Shank: 38mmx90mm
Bảo hành: 6 tháng
Lực tác động: ≥225J
Tần số tác động: ≥34Hz
Mô -men xoắn đầu ra của thanh khoan: ≥140nm
Kích thước đường hầm khả thi: 2.2mx 2.2m - 3.0mx 3.0m
Tổng mức tiêu thụ không khí: ≤225L/s
Khoan góc: 0-360 độ
Dịch vụ hậu mãi được cung cấp: Hỗ trợ trực tuyến, hỗ trợ kỹ thuật video
Cân nặng: 95kg
Làm nổi bật:

pneumatic rock drilling rig

,

horizontal directional drilling equipment

,

small mining drilling rig

Thông tin cơ bản
Nguồn gốc: Chiết Giang, Trung Quốc
Hàng hiệu: SANROCK
Chứng nhận: CE ISO 9001:2015
Số mô hình: SR90
Thanh toán
chi tiết đóng gói: Gói khỏa thân cho máy móc, gói hộp gỗ cho phụ tùng hoặc nhu cầu của khách hàng.
Thời gian giao hàng: 15-25 ngày
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Khả năng cung cấp: 5000set/bộ mỗi tháng
Mô tả sản phẩm

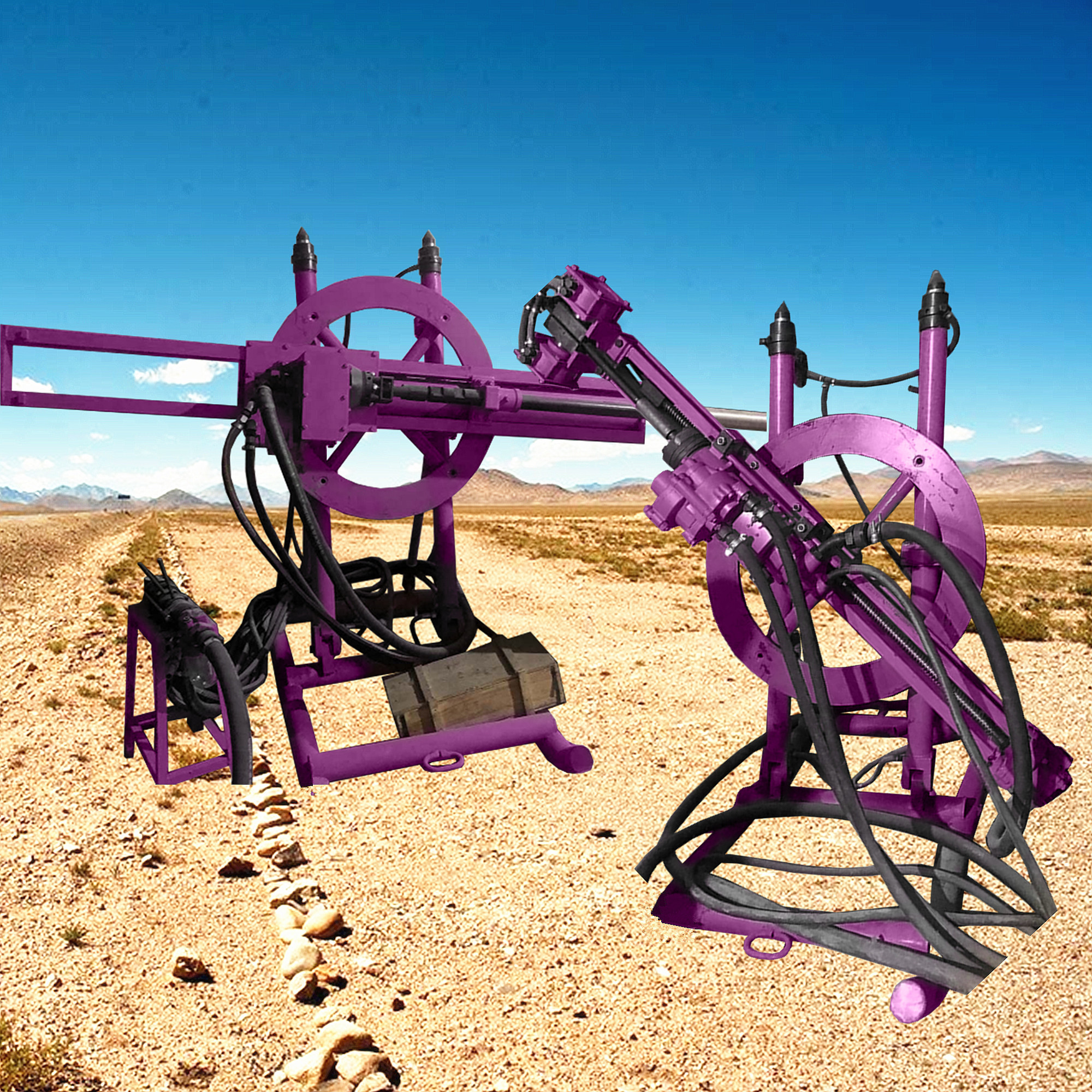

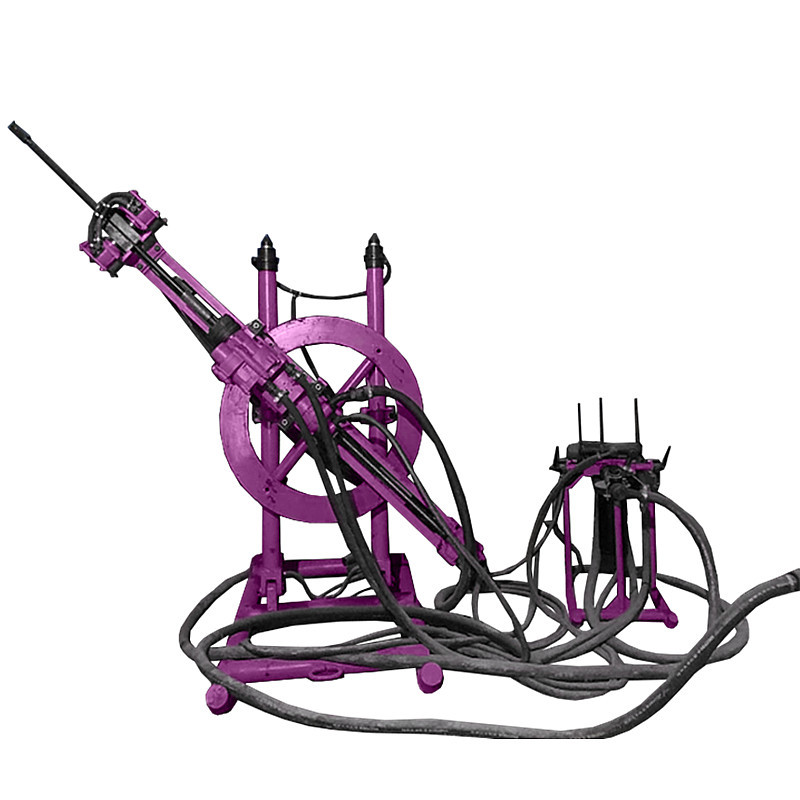

Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 0Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 1

This horizontal directional drilling rig combines disc-type structural stability with advanced

horizontal directional drilling technology, specifically engineered for precision tunneling and

pipeline installation projects. Equipped with a high-frequency DTH hammer ≥34HZ and 80mm

maximum bore diameter capacity, it achieves exceptional performance in hard rock formations

at depths up to 35-40 meters.

The sizes of different models of turntables are suitable for 2.2mx2.2m-2.7mx2.7m / 2.5mx2.5m-3.0mx3.0m

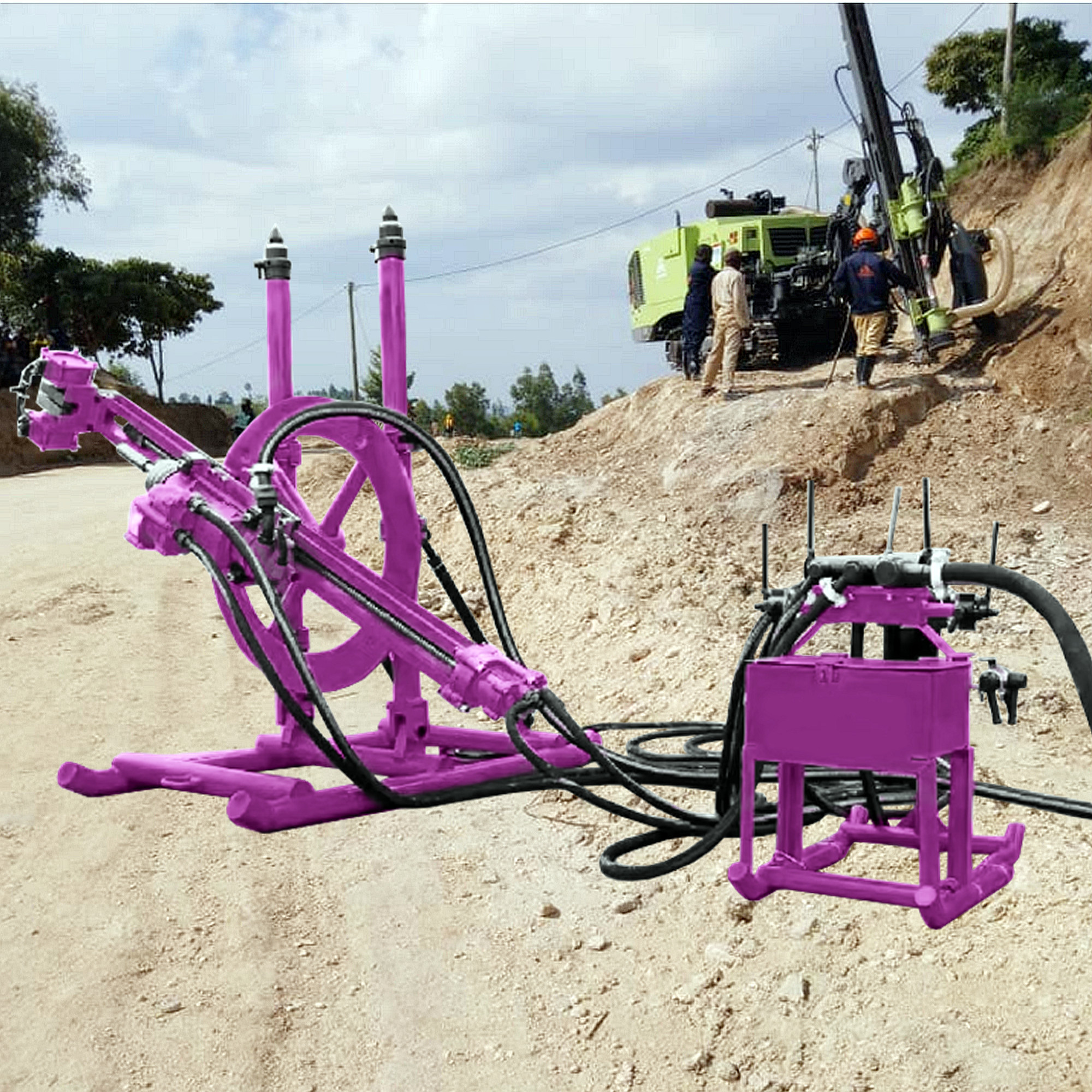

Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 2

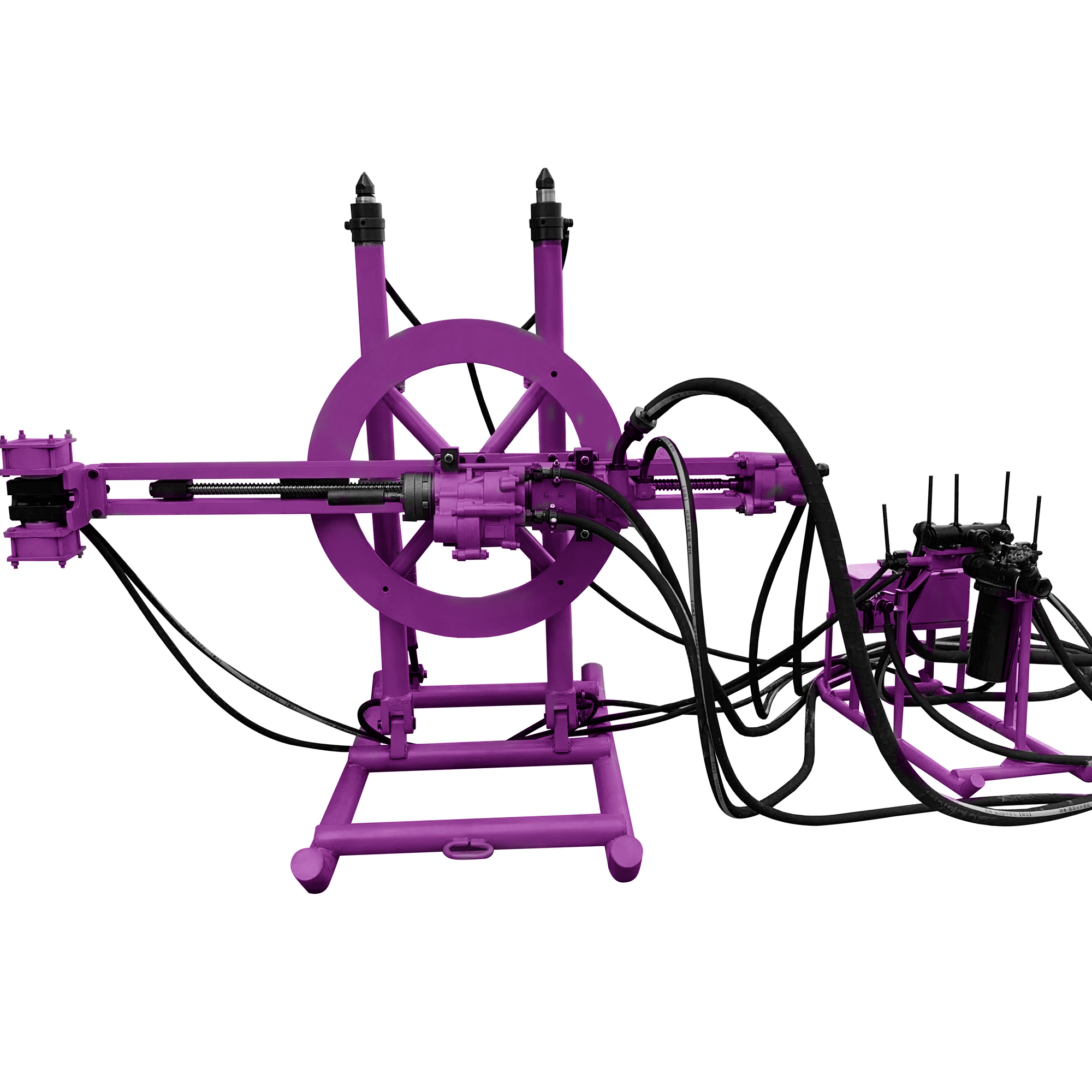

Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 3

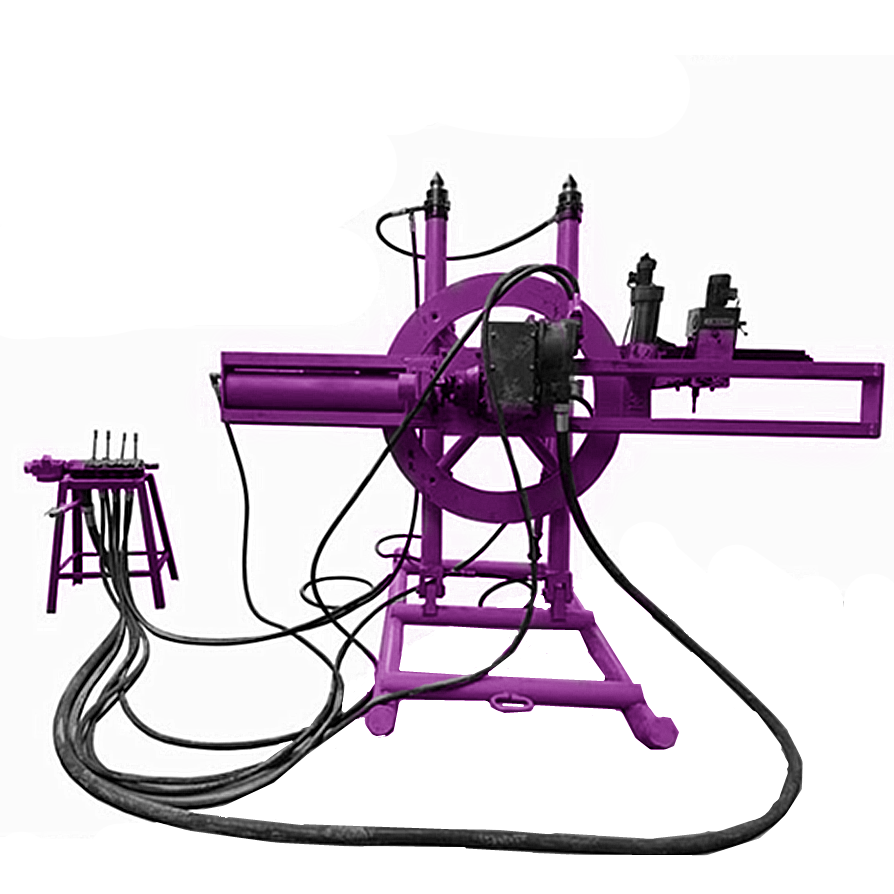

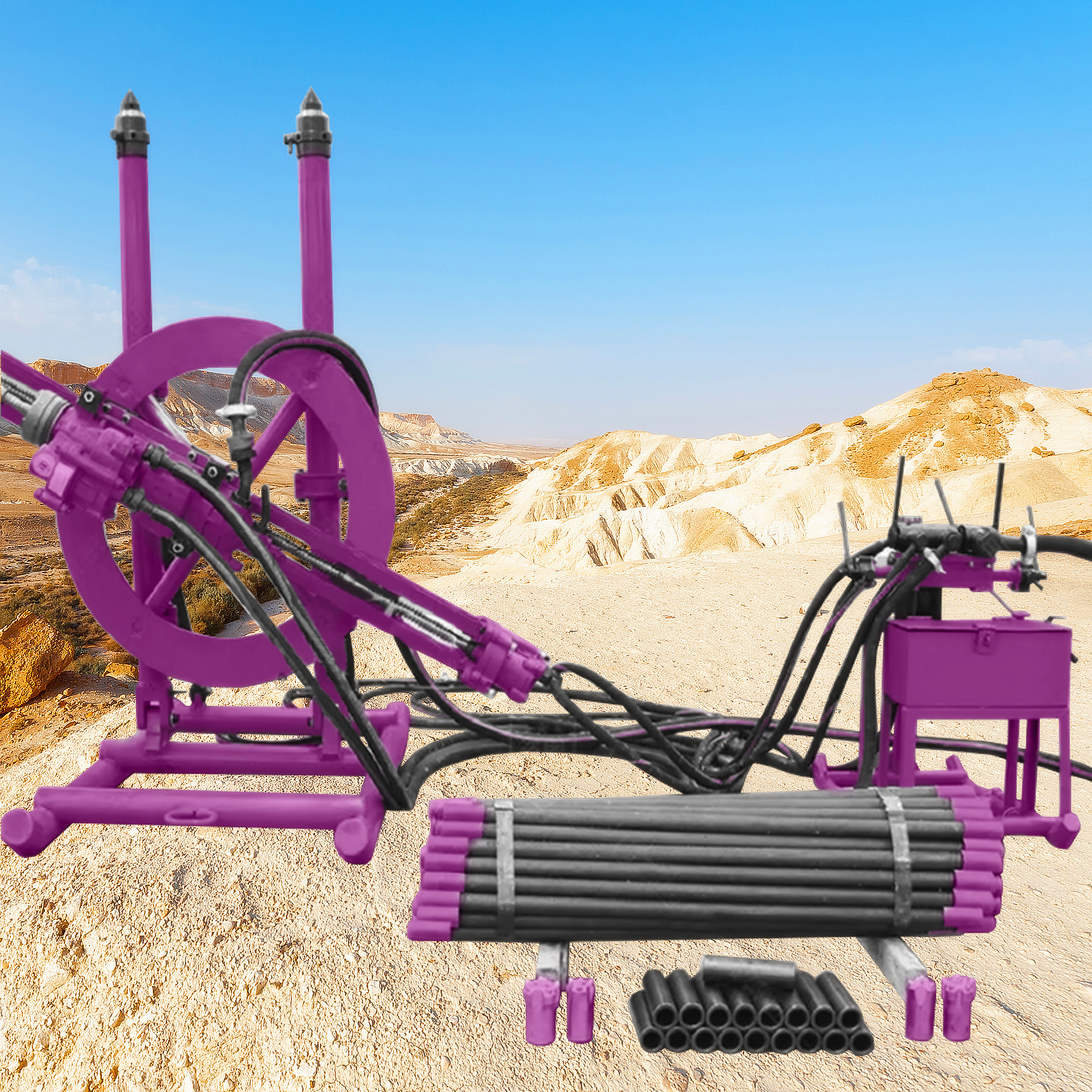

Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 4Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 5

After the drill frame parts are transported to the working point, they should be assembled

in the order of the bottom crowbar, air top, disc and propeller. Each part should be cleaned

and wiped clean, coated with grease and tightened. Before the main air inlet and water pipes

are connected to the control console, all the sand and mud should be blown clean.

All the hoses must also be blown clean before being connected to the corresponding parts of

the drill frame to prevent sand and mud and other dirt from entering the machine parts.





Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 6

Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 7

Products Description

Type
Rotary Drilling Rig
Product name
Drilling Rig
Applicable
Building Energy ,Mining,borehole drilling rig
Parameters
Model SR90
Model SR150
Drilling Hole Diameter
50-80mm
80-140mm
Max. Drilling Hole Depth
35m
180m
Shank Model
φ38mmx90mm

Impact Force
≥225J
15000N
Impact Frequency
≥34HZ
60rpm
Output Torque of Drill Rod
≥140NM
1500-2000NM
Workable Tunnel Dimensions
2.2m x 2.2m - 3.0m x 3.0m
2.2m x 2.2m - 3.0m x 3.0m
Total Air Consumption
≤225L/s
120-350L/s
Drilling Angles
0-360 degrees
0-360 degrees
Mounted
No (Man Portable)
Two Wheels Trailer
Weight for Rocks Drilling Machine
95KG
450KG
Dimensions for Rocks Drilling Machine
890x360x305mm

Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 8Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 9Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 10Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 11







Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 12Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 13Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 14Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 15



Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 16Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 17



Company Profile

Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 18

Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 19

Mining Small Drilling Rig Horizontal Directional Drilling Equipment Pneumatic Rock Drilling Rig 19

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
