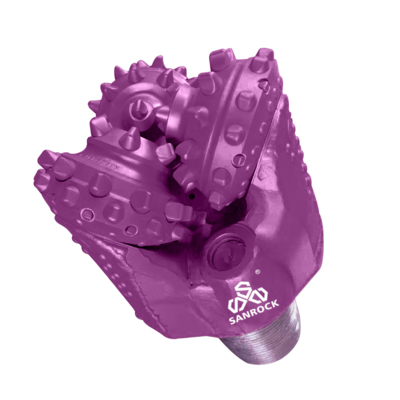

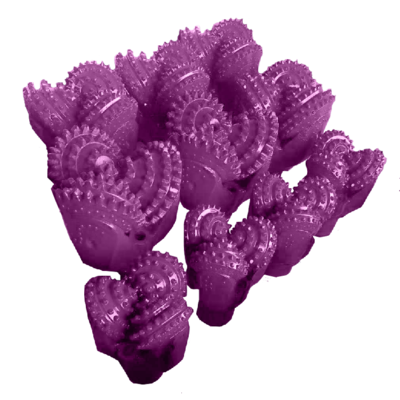

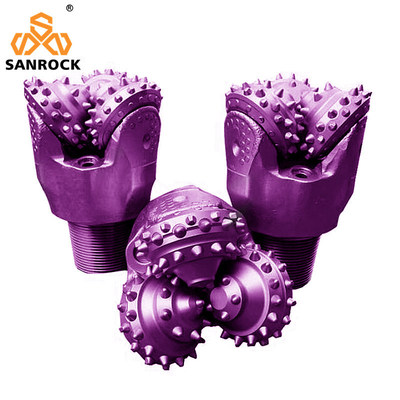

Tricone drill bits are engineered to tackle hard rock formations such as granite, basalt,
and quartzite, delivering robust performance in high-compressive-strength environments.
Equipped with ultra-durable tungsten carbide inserts or diamond-enhanced cutters, these bits
combine crushing and shearing actions to fracture dense, abrasive rock efficiently.
Their hardened cone structures and heavy-duty sealed bearings withstand extreme axial loads
and rotational torque, minimizing premature wear in demanding applications like mining
exploration or deep geothermal drilling. The intermeshing cone design ensures uniform stress
distribution, reducing vibration and maintaining borehole stability even in fractured or uneven
strata. Advanced heat-resistant lubrication systems prolong bearing life under prolonged
high-temperature conditions, while optimized fluid channels enhance cuttings evacuation to
prevent bit balling. With superior penetration rates and extended service cycles, tricone bits
remain a reliable, cost-effective solution for projects requiring precision and durability in
hard rock drilling operations.
Products Description
|
|
|
|
Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
