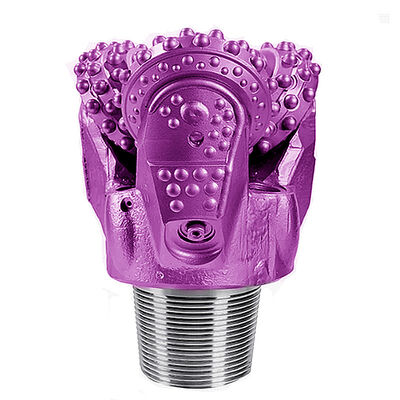

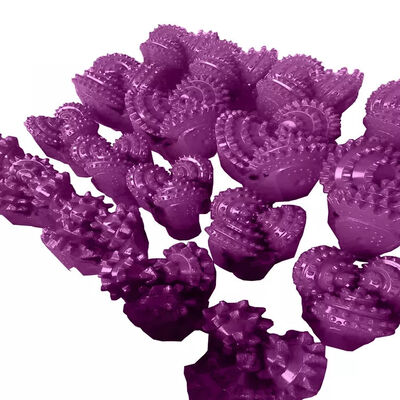

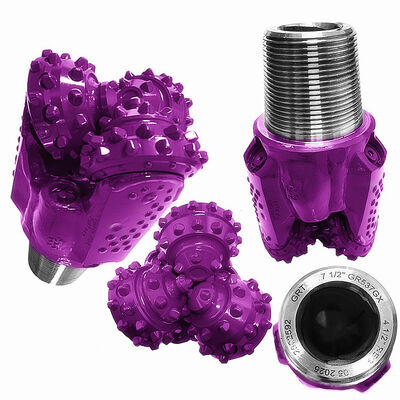

Tricone drill bits are engineered with three rotating cones mounted on precision bearings,
delivering unmatched stability and load distribution for balanced drilling performance.
Featuring interchangeable hardened steel teeth or tungsten carbide inserts, they excel in
diverse formations—from soft sediments to abrasive hard rock.
The rolling cone design minimizes friction and heat buildup, significantly extending operational
lifespan under extreme pressure and high-temperature conditions. Sealed bearing systems ensure
contamination resistance, while customizable tooth configurations optimize cuttings removal and
penetration rates. Renowned for directional control and reduced vibration, these bits offer exceptional
durability and cost-efficiency in oil and gas, mining, and geothermal applications.
Their modular construction also supports tailored solutions for complex geological challenges,
prioritizing reliability, efficiency, and long-term value.
Products Description
|
|
|
|
Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
