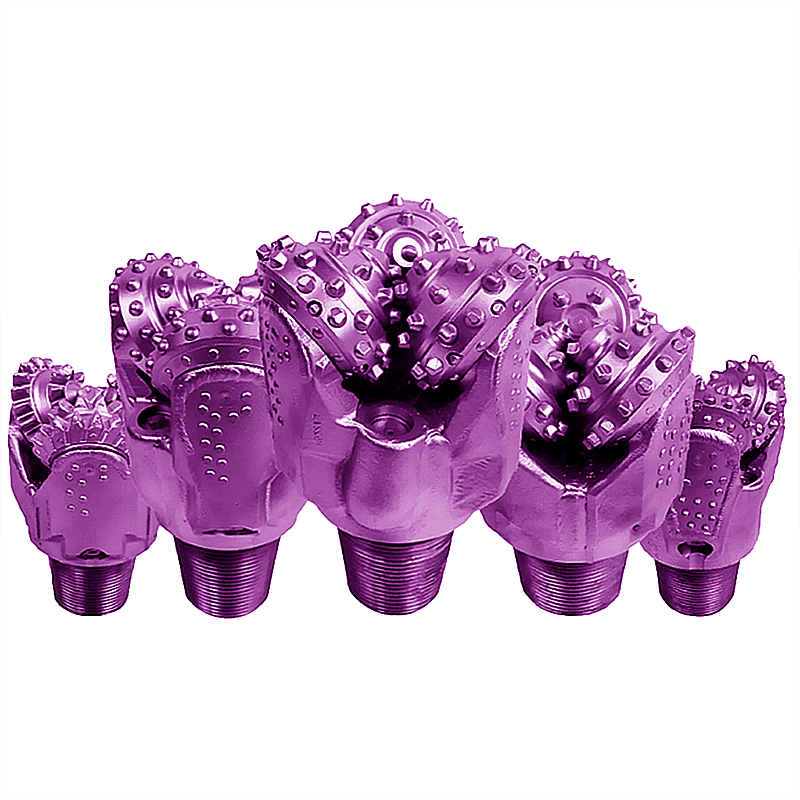

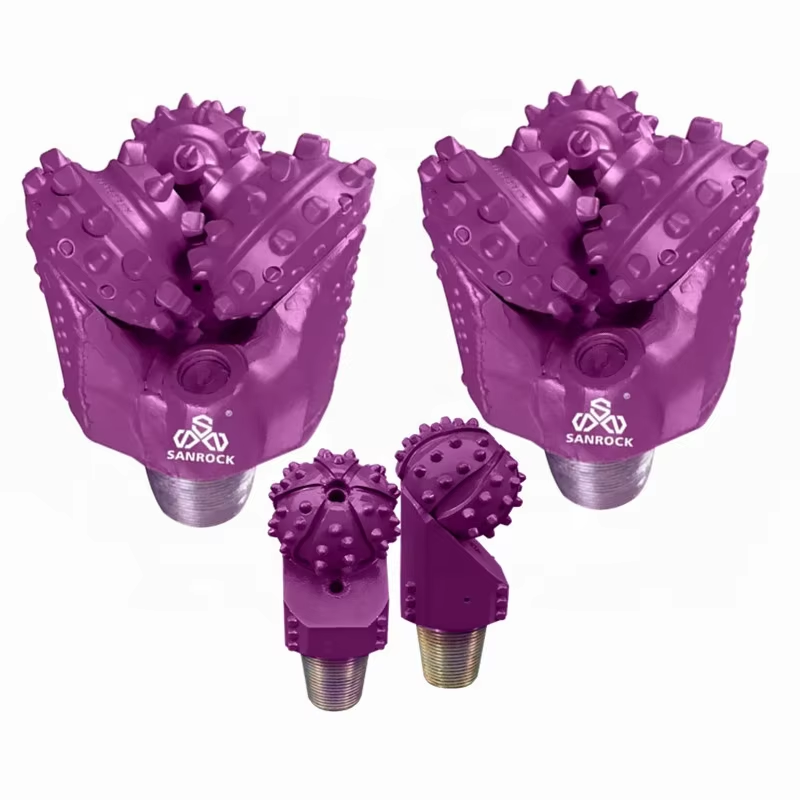

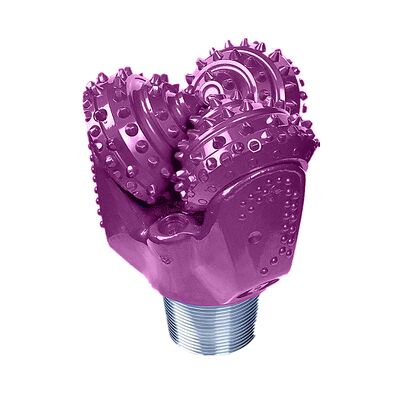

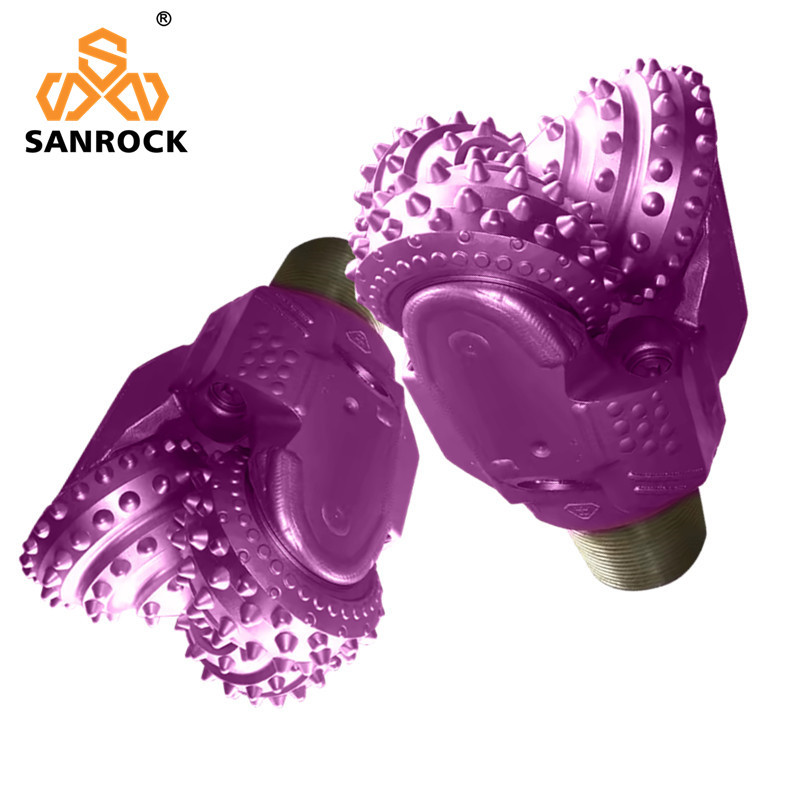

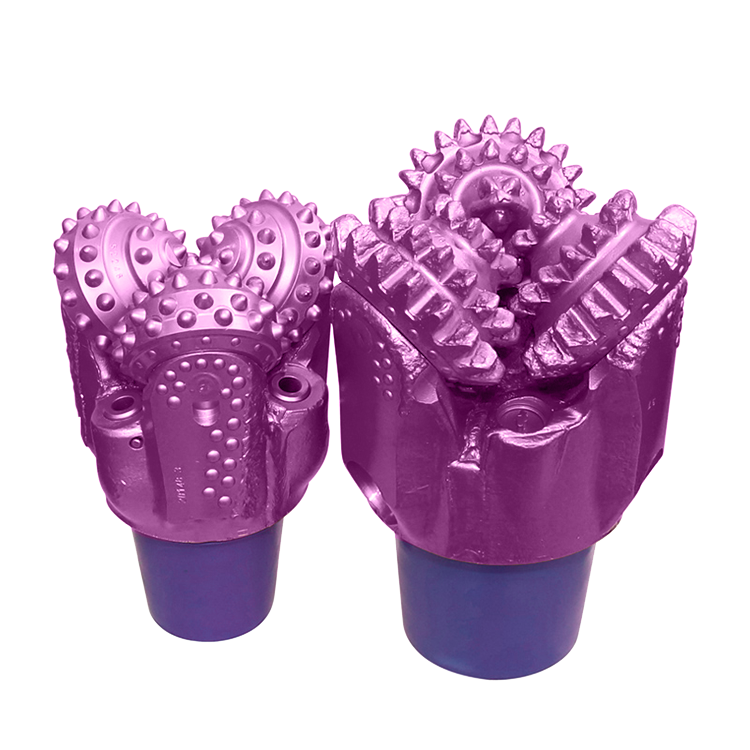

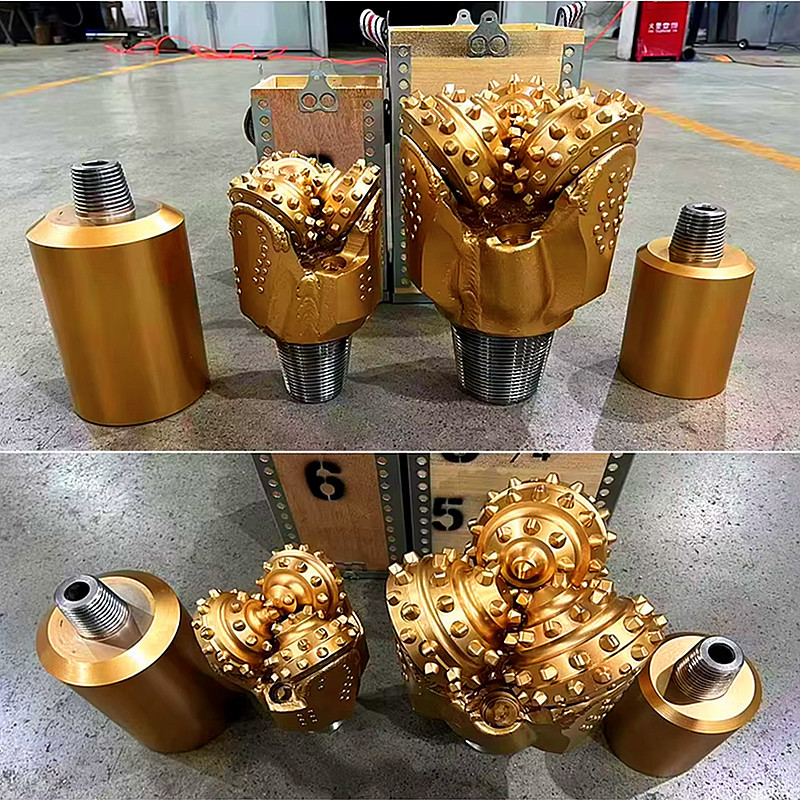

Tricone Drill Bit A tricone drill bit is a rotary drilling tool featuring three conically-shaped,rotating steel cones mounted on high-load bearings.Each cone is equipped with either tungsten carbide inserts for soft to medium formationsor diamond-enhanced cutters (PDC) for hard rock applications.
The offset axis arrangement of the cones creates a combined rolling and scraping action during rotation, enabling efficient rock fragmentation across varied geological strata.
This robust design delivers exceptional durability in demanding drilling conditions while
maintaining stable borehole trajectory. Predominantly used in oil/gas exploration,
geothermal drilling, and mineral prospecting, tricone bits demonstrate superior performancein both conventional and directional drilling operations through their optimized weight
distribution and enhanced cuttings removal capabilities.
Products Description
|
|
|
|
Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
